Flotation process flow

Flotation process flow

Reverse flotation includes rough flotation and clean flotation, through which ilmonite iron ore will be greatly upgraded.

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

Reverse flotation includes rough flotation and clean flotation, through which ilmonite iron ore will be greatly upgraded. The iron concentrate obtained is of 56.73% in content. The middlings return to magnetic flotation, forming a close-circle process.

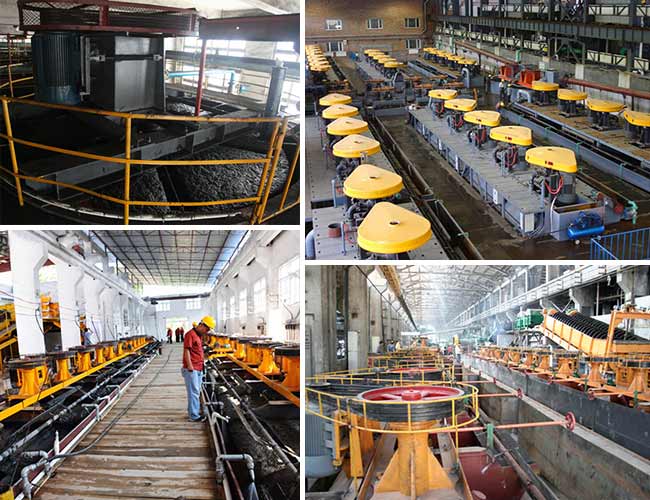

Flotation process flow

The full set of machines of iron ore beneficiation are jaw crusher, hammer crusher, roll crusher, impact crusher, vertical crusher, cone energy efficient ball bearing, vibration screen, automatic anti-sand spiral classifier, high-performance energy-saving flotation machine, mining stirred tank, feeding machine, concentrator, mine hoist, mine conveyor, pre-water-ball plate, spiral chute, beneficiation shaker and washing machine, etc.

Technical Data

Category Specification
Model
Effective
cubage
(m³)
Processing
capacity
(m³/min)
Main shaft     loam board Dimensions
(L×W×H)
(mm)
Single
 trough
Weight
(t)
Power
(kw)
Rotate
speed
(r/min)
Rotate
 speed
(r/min)
Power
(kw)
XJK type
flotation
machine
XJK-0.35 0.35 0.18-0.4 1.5 483 25 1.1 700×700×700 0.5
XJK-0.62 0.62 0.3-0.9 3.0 400 25 1.1 900×820×850 1.0
XJK-1.1 1.1 0.6-1.6 5.5 330 25 1.1 1100×1100×1000 1.4
XJK-2.8 2.8 1.5-3.5 11 280 25 1.1 1750×1600×1100 2.5
XJK-5.8 5.8 5-7 22 240 25 1.5 2200×2200×1200 3.6
SF type
flotation
machine
SF-0.37 0.37 0.2-0.4 1.5 386 25 1.1 700×700×750 0.5
SF-0.7 0.7 0.3-0.9 3 400 25 1.1 900×820×950 1.0
SF-1.2 1.2 0.6-1.6 5.5 330 25 1.1 1100×1100×1100 1.9
SF-2.8 2.8 1.5-3.5 11 268 25 1.1 1750×1600×1150 2.6
SF-4 4 2-4 15 220 25 1.5 1850×2050×1200 2.9
SF-8 8 4-8 30 191 25 1.5 2200×2900×1400 4.2
SF-10 10 5-10 30 191 25 1.5 2200×2900×1700 4.5
SF-20 20 5-20 30×2 191 25 1.5 2850×3800×2000 9.9
JJF type
 flotation
machine
JJF-2 2 1-3 7.5 443 25 1.5 1400×1400×1100 1.7
JJF-4 4 2-4 11 305 25 1.5 1600×2150×1250 2.4
JJF-8 8 4-8 22 233 25 1.5 2200×2900×1400 4.5
JJF-10 10 5-10 22 233 25 1.5 2200×2900×1700 4.9
JJF-16 16 5-16 30 180 25 1.5 2850×3800×1700 8.0
JJF-20 20 5-20 37 180 25 1.5 2850×3800×2000 10.5
