Impact Crusher

Impact Crusher

Type: Secondary Crusher

Input Size: 250-500mm

Port: Qingdao,Tianjin, Shanghai or others

Processed Materials: stone with compression strength lower than350Mpa, such as limestone, gypsum, consrete, etc.

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

Brief Introduction to Impact Crusher

An impact crusher is a piece of heavy construction equipment people can use to reduce the size of things like rock, waste concrete, and similar materials. The operator feeds chunks of material into the machine's hopper and it crushes them, turning the pieces into small chunks of a more uniform size. They can be run through another crusher to make them even smaller, or used as-is, depending on the setting. Numerous companies manufacture impact crushers, including large stationary models, as well as portable equipment for job sites.

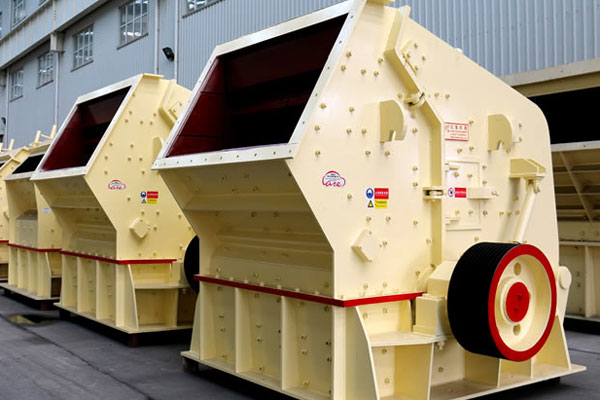

Impact Crusher

Impact crusher which can also be called impact breaker is applicable for various hard and fragile materials such as limestone, coal, salt, gypsum, alum, brick and tile, etc in mining, transportation, energy, construction and chemical industry. The crushing compressive strength of the materials should not be in excess of 150Mpa. Mobile impact crusher is mainly used in industries such as cement, coal separation, electricity generation, building materials and compound fertilizer, etc.

This series of impact crushing machine is the new generation mineral impact crusher which has combined advanced techniques at home and abroad with the actual mining conditions. Hongxing Machinery adopts the latest manufacturing technology and unique structure design, producing products of cubical shape without tension and crack.

Advantages of Mobile Impact Crusher

1. Simple structure, small size, light weight, high production capacity, low production cost.

2. The rocks are crushed along the surface, so that the electricity consumption is lower and the crushing efficiency is higher.

3. High crushing ratio, so that it is able to simplify the crushing process and changes the three-stage crushing into two-stage or single-stage crushing and reduces the cost of the ore beneficiation plants.

4. The gap between the impacting plate and the hammer plate can be conveniently changes, thus effectively adjusting the discharging granularity.

5. Comprehensive crushing functions, high production rate and comprehensive interests.

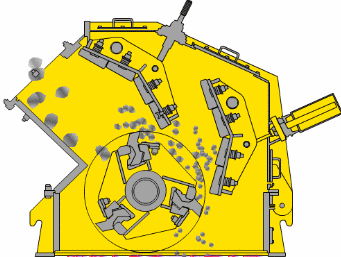

Working Principle of Impact Stone Crusher

Impact Crusher

Impact stone crusher is a kind of crushing machine that uses impacting energy to crush materials. When the machine works, driven by the electro motor, the rotor will rotate with high speed, and when the materials go into the action zone of the plate hammer, they will strike and are crushed on the plate of the rotor, and then are crushed again when they are thrown to the impacting device, and then the materials will bounce back from the impact lining board and go to the action zone of the plate hammer and are crushed again. This process will proceed repeatedly, and the materials go into the first, second and third impacting chamber to be crushed until they are crushed to the required granularity, and then discharged from the discharging mouth. Adjusting the gap between the impacting rack and the rotor can change the discharging granularity and the shape of the materials.

Applications

Ideal for

  • Any demanding secondary and tertiary application
  • For soft rock, gravel, recycling, coal, phosphate, industrial materials
  • For stationary and mobile applications

Technical Data

Model Specification
(mm)
Feed
opening
(mm)
The Maximum
Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
Overall
dimension
(L×W×H)
(mm)
Total
weight
(t)
PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 2330×1660×2300 12
PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-55 2370×1700×2390 15
PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 2680×2160×2800 17.7
PF-1214 Φ1250×1400 400×1430 350 80-180 6P   132 2650×2460×2800 22.4
PF-1315 Φ1320×1500 860×1520 500 100-280 6P   200 3180×2720×2620 27
PF-1320 Φ1300×2000 993×2000 500 140-380 6P   250 3220×3100×2620 34
PF-1520 Φ1500×2000 830×2040 700 200-550 4P   315-400 3959×3564×3330 50.6
PF-1820 Φ1800×2000 1260×2040 800 400-800 4P   630-710 4400×3866×4009 83.21

Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you. Contact Email: sales@hxjq.com
