Jaw Crusher

Jaw Crusher

Type: Primary Crusher

Max. Feeding Size: 1500mm

Production capacity: 1–2200 t/h

Processed Materials: Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc.

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

China small stone jaw crushers are the crushing machines widely used in various fields of mining, construction, road and railway construction and water works. It is a stone crusher with the advantages of simple structure, stable performance, easy maintenance, final particle and high crushing ratio. According to different models, jaw crushers can be divided into PE jaw crusher and China PEX jaw crusher.

Jaw crusher is mainly used for coarse crushing and medium crushing in the departments of mining, building materials and infrastructure construction. According to the feeding width, it can be divided into large, medium and small sized. The jaw crushers have many advantages such as simple structure, easy manufacturing, reliable working condition and convenient operation and maintenance.

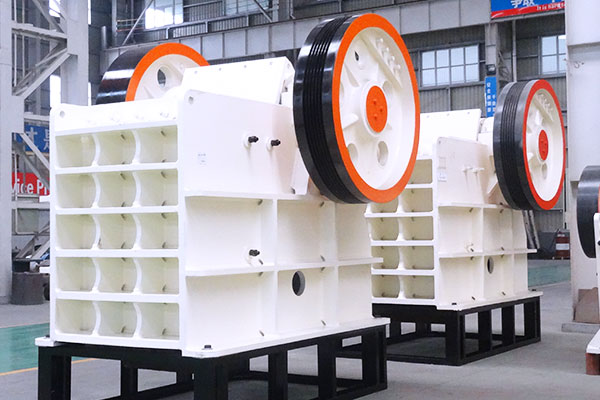

Major Advantages of Pe/Pex Jaw Crushers

Jaw Crusher

1. Effectively solves the problem of high operation rate and little maintenance time caused by low output of limestone crusher.

2. Can complete the crushing work of large-sized limestone.

3. The blending of the two materials is even and the mixing quantity of the desulfurized limestone is greatly increased.

4. The electricity needed is reduced.

5. The granularity of the wastes is small.

6. Effectively improves the labor strength and the working environment of the workers.

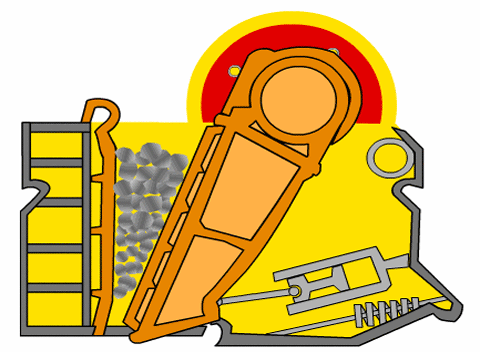

Working Principle of Primary Jaw Crusher

Jaw Crusher

The working manner of this primary jaw crusher is dynamic extrusion type, and its working principle goes like this: the electro motor drives the belt and belt wheel to make the movable jaw to move up and down through the eccentric shaft, and then movable jaw goes up, the angle between the toggle pate and the movable jaw is bigger, thus pushing the movable jaw to get close to the fixed jaw, and at the same time, the materials are crushed or smashed, thus reaching the goal of crushing; when the movable jaw goes down, the angle between the toggle pate and the movable jaw is smaller, under the effect of the draw bar and the spring, the movable jaw moves always from the fixed jaw, and then the crushed materials will be discharged out from the lower mouth of the crushing chamber. With the continuous rotation of the electro motor, the movable jaw of the crusher will do periodic motion to crush and discharge the materials, thus realizing mass production.

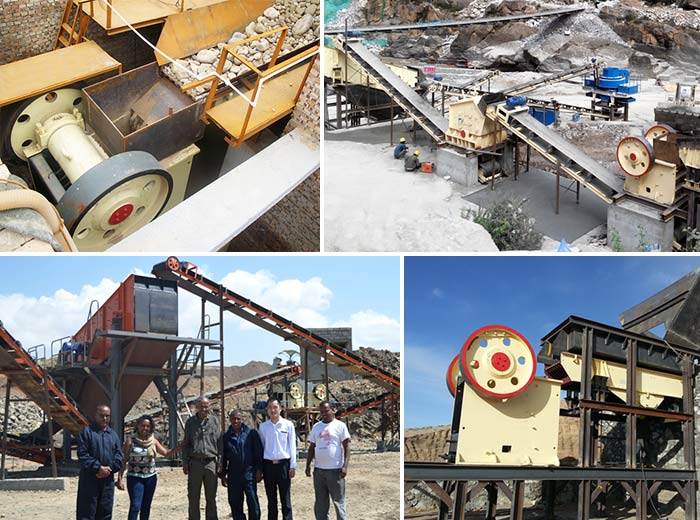

Applications

Ideal for

  • Any demanding primary crushing application
  • Surface and underground applications
  • Stationary, portable and mobile installations
  • For hard rock, soft rock, gravel, recycling, industrial materials, slag, foundry waste...

Technical Data

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-64 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600

Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you. Contact Email: sales@hxjq.com
