Rotary Kiln

Rotary Kiln

Supply Ability: 8 Set/Sets per Month

Production capacity: 168-10000t/h

Type: Building Materials Equipment

Feature: Save pulverized coal, Harmless, Fuel use

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

Rotary kiln, as an important industrial machine, plays important role in various fields. In building materials industry, rotary kiln can be used to calcinate cement clinker as well as clay, limestone and slag dryer; in the production of refractory materials, using rotary kiln to calcinate raw materials could make its dimension stable and strengthen its intensity, and then processing-shaping. In beneficiation process, using rotary kiln to magnetizing roast the poor iron can make the original weak magnetic change into strong magnetic, which facilitates magnetic separation. In chemical industry, rotary kiln can be used to produce soda, calcinate phosphate and barium sulfide.

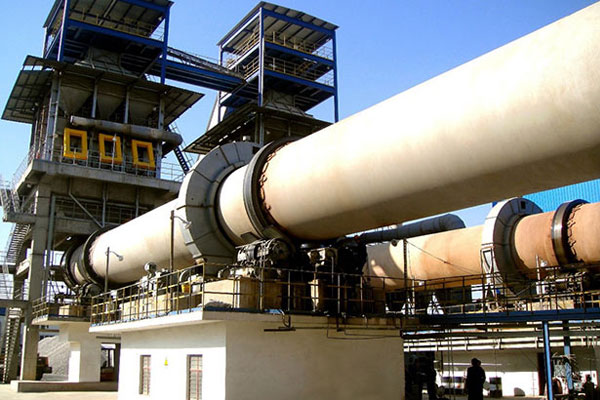

Rotary Kiln

According to the different materials, the kiln can be divided into cement kiln, metallurgy chemical kiln and lime kiln. The cement kiln is mainly used for the calcinations of cement clinker, and it has two types of dry and wet methods. Cement rotary kiln belongs to the building material equipment. Cement rotary kiln is of solid structure, stable operation, and high quality output product.

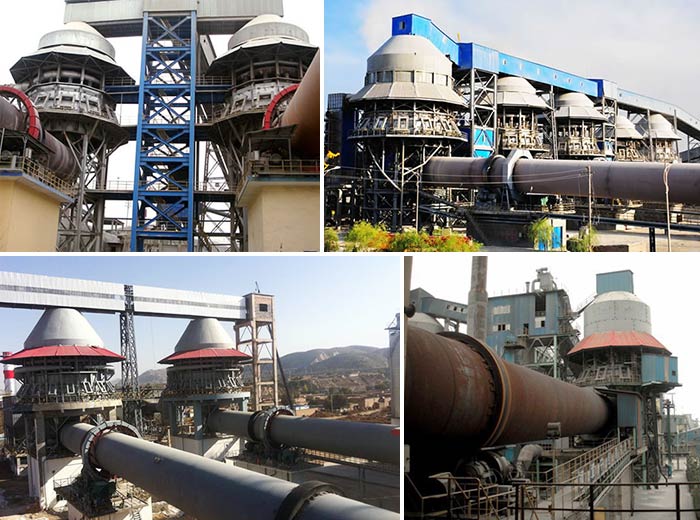

Rotary Kiln

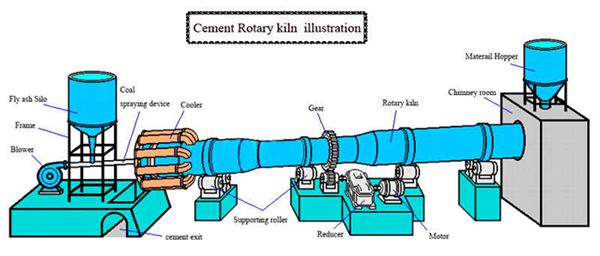

Perhaps one of the most common uses for this technology is the creation of a rotary cement kiln, which grinds limestone, clay, and shale down to small bits of rock and transforms them into a usable cement mixture that is ready to be either packaged or immediately used. During this process, the materials are exposed to varying temperatures that will evaporate any water present and transform the limestone and clay back to their original oxide states. As the internal heat increases up to 2642 degrees F (1450 degrees C), the rocks that were transformed into belite and calcium oxide melt together to form the composition alite. Due to the extreme heat associated with this process, the resulting lumps of alite are no larger than 0.39 inches (10 mm) across and are easily handled once the cooling process is completed.

Technical Data

Product
Specification
(m)
Kiln dimensions Motor
power
(kw)
Total
weight
(t)
note
Diameter
(m)
Length
(m)
Obliquity
(%)
Capacity
(t/d)
Rotation
speed
(r/min)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61 -----
Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 -----
Φ2.5×54 2.5 54 3.5 280 0.48-1.45 55 196.29 outside disassemble kiln
Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ------
Φ2.8×44 2.8 44 3.5 450 0.437-2.18 55 201.58 outside disassemble kiln
Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ------
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237 outside disassemble klin
Φ3.0×60 3 60 3.5 800 0.3-2 100 310 ------
Φ3.2×50 3.5 50 4 1000 0.6-3 125 278 disassemble klin
Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283 kiln with preheater precalcine
Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363 kiln with prehrater precalcine
Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419 Generating klin for usimg ofterheat
Φ4.0×56 4 56 4 2300 0.41-4.07 315 456 klin with prehrater precalcine
Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510 klin with prehrater precalcine
Φ4.2×60 4.2 60 4 2750 0.41-4.07 375 633 klin with prehrater precalcine
Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583 klin with  prehrater precalcine
Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4 klin with prehrater precalcine
Φ4.7×74 4.7 74 4 4500 0.35-4 630 849 klin with prehrater precalcine
Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899 klin with prehrater precalcine
Φ5.0×74 5 74 4 6000 0.35-4 710 944 klin with prehrater precalcine
Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265 klin with prehrater precalcine
Φ6.0×95 6 95 4 10000 Max5 950×2 1659 klin with prehrater precalcine

Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you. Contact Email: sales@hxjq.com
