Sand Maker

Sand Maker

Supply Ability: 15 Sets per Month

Production capacity:12-360t/h

Port: Qingdao,Tianjin, Shanghai or others

Feature: Structure is simple to install, easy maintenance, low running costs

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

The sand maker is the ideal equipment for sand making and building stones reshaping. The high efficiency impact crusher can be used to manufacture ideal dinas and concrete aggregate. As for building stones reshaping, the high efficiency impact crusher ensures that clients get high quality crushed stone with good shape. The sand maker is manufactured with advanced world standard. It features high performance and low consumption. It is irreplaceable among all the fine crushing equipment.

Sand Maker

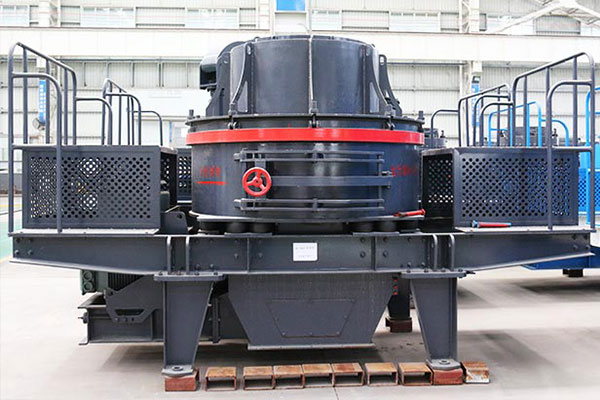

VSI sand maker is a new type sand making machine manufactured by Hongxing Machinery according to the market demand. Compared with traditional sand maker, it can save more energy, have higher anti-pressure strength and higher processing efficiency and the final products are even in granularity. It adopts hydraulic device so that it is easier to realize automatic production.

Sand making machine is the equipment which makes sand artificially. It can be used together with impact crusher or cone crusher according to the material condition and production requirement. Sand making impact crusher (VSI crusher) is applicable for various coarse, medium and fine materials such as all kinds of rocks, refractory materials, cement clinker, quartzite, iron ore, concrete aggregate. It is the best mechanical equipment for aggregate for high-class highway pavement and construction of hydropower facilities.

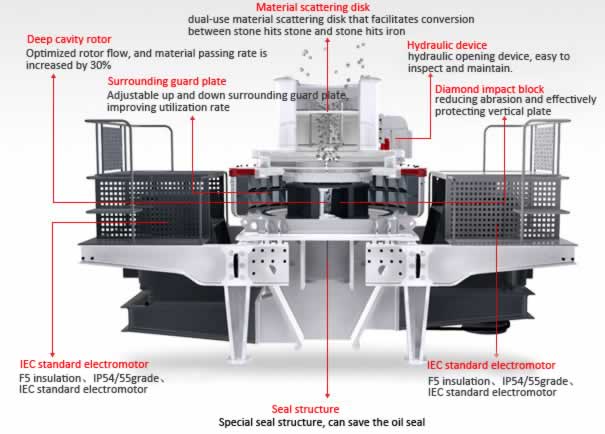

Merits and Features of Sand Maker

1. The high efficiency crushing, coarse grinding function.

2. Structure is simple to install, easy maintenance, low running costs.

3. By the moisture content of materials by non-broken material capacity, impact, moisture content of up to 8%.

4. Excellent product shape, cubic shape, low flakiness content suitable for aggregate shaping, artificial sand and aggregate production of high-grade highways.

5. Bulk density, minimal iron contamination.

Sand Maker

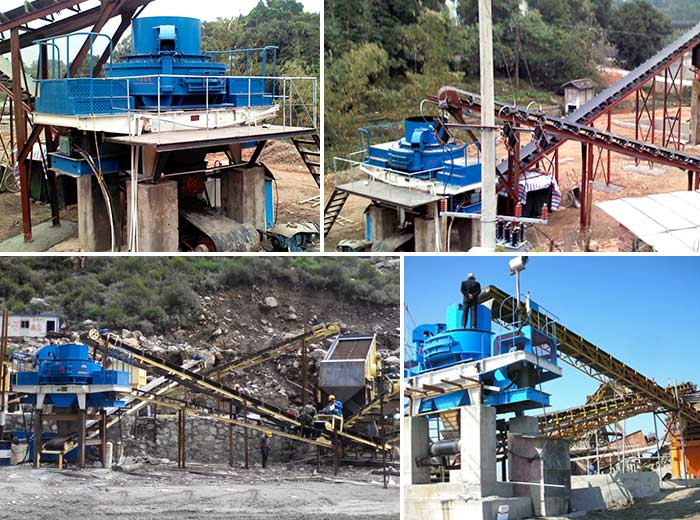

Applications

Ideal for

  • When highest end product quality is required
  • Lowest possible cost per ton of any VSI method
  • Suitable for hardest and most abrasive materials
  • For stationary and mobile installations

Technical Data

Model
specification
Max.feeding
size
(mm)
Power
(kw)
Rotation
speed of
impeller
(r/min)
Capacity
(t/h)
Overall
dimension
(L×W×H)
(mm)
HX-06 35 2P   37-55KW 2000-3000 12-30 2500×1620×2600
HX-07 45 4P   55-75KW 1500-2500 25-55 2700×1760×2800
HX-09 50 4P   110-150KW 1200-2000 55-100 3900×2000×3070
HX-10 60 4P   150-180KW 1000-1700 100-160 4600×2350×3450



Model HXVSI-7611 HXVSI-8518 HXVSI-9526 HXVSI-1140 HXVSI-1145 HXVSI-1150
Capacity
(t/h)
Feed both
at center
 and sides
120-180 200-260 300-380 450-520 500-610 520-650
Feed at
center
60-90 100-130 150-190 225-260 245-355 255-365
Max.feeding
size(mm)
Soft
material
35 40 45 50 50 50
Hard
material
30 35 40 40 45 45
Rotation
speed
(r/min)
1700-1890 1520-1690 1360-1510 1180-1310 1150-1300 1150-1300
Double Motor
power(kw)
4P   110 4P   180 4P   264 4P   400 4P   400 4P   500
Overall dimension
(L×W×H)(mm)
3700×2150×2100 4140×2280×2425 4560×2447×2778 5100×2700×3300 5500×2700×3300 5500×2700×3300
Power supply 380V 50HZ
Lubrication
station
Double
motor
power of
oil pump
2×0.31Kw
Safety
assuance
Double oil pumps assure enough oil supply:automatic
 switch off with no oil stream or pressure,water cooling
in summer,motor heating stare-up in winter.
Overall
dimension
(L×W×H)
(mm)
820×520×1270
Power of oil
 tank heater
2KW

Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you. Contact Email: sales@hxjq.com
