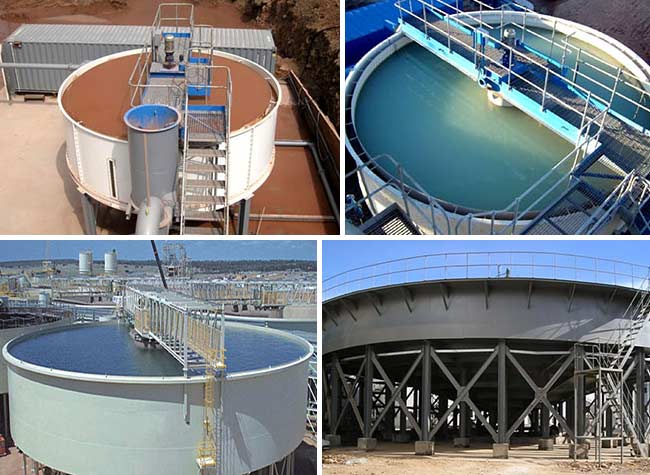

High Efficiency Concentrator

High Efficiency Concentrator

  • ISO9001
    Certification

  • CQC
    Certification

  • CE
    Certification

Charge Amount: 1.8-204.6t

Reference Power: 5.6-6250t/d

Application Range: Metallurgy, chemical industry, coal, nonmetal ore dressing, environment protection, etc

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

Concentrator (high efficiency concentrator) is generally comprised of the concentration tank, drag davit, gearing, lifting device, feeding device, discharging device and signal safety devices.

The main working features of the concentrator (high efficiency concentrator) is to add a certain amount of flocculant in the slurry to be concentrated to make the mineral particles form into the floc and accelerate their settling velocity, thus achieving the purpose of improving enrichment efficiency.

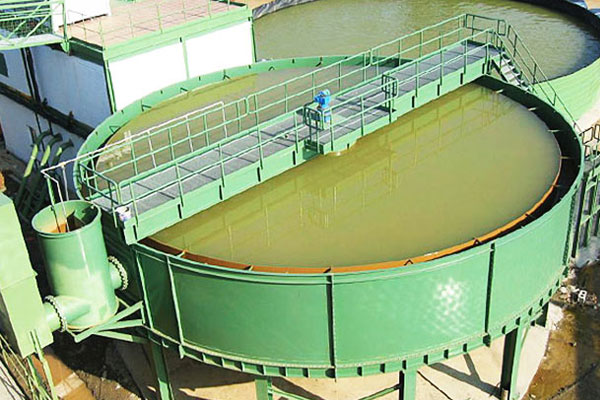

High Efficiency Concentrator

Features

1. Adding the flocculantto increase the particle size of the sedimentation solid particles so as to speed up the settling velocity;

2. The installation of inclined plate shortens the sedimentation distance of the mineral particles and increases the size of the sedimentation;

3. Making the mud deposited layer of dense phase play the roll of flocculation, filtering, compression and improving the processing capacity;

4. It is equipped with a complete self-control facilities.

The concentrator (high efficiency concentrator) is widely used in metallurgy, mining, coal, chemicals, building materials, environmental protection departments for the processing of slime, waste water and waste residue, which is of great significance for the backwater utilization, bottom flow conveyor concentration and environmental protection.

In the operation of the wet beneficiation, the concentrate contains large amounts of water, which needs dehydration. In the grading process, in order to increase the feeding concentration of the lower section, improve the effect of sorting as well as to make it more suitable for the process flow, it is also necessary for the middlings to be dehydrated and concentrated. The pulp thickner and tailing thickner have wide application range in the mineral processing industry. The concentrator is mainly used to play the role of dehydration and concentration in the mineral processing operations and it has occupied an indispensable position in the ore benefication industry.

Technical Data

Specification Concentration pond (m) Deposit square(m2) Harrow part Motor Processing capacity (t/d) Total weight(t)
Model Specification Inner diameter Depth Pond degree Method Height(m) Rotation time(min/r) Driving Lifting
NZS-1 Φ1.8m 1.8 1.8 2.54 Manual 0.16 2 Y90L-6 1.1KW ---- 5.6 1.9
NZS-3 Φ3.6m 3.6 1.8 10.2 Manual 0.35 2.5 Y90L-6 1.1KW ---- 22.4 4.3
NZS-6 Φ6m 6 3 28.3 Manual 0.2 3.7 Y90S-4 1.1KW ---- 62 10.7
NZSF-6 Φ6m 6 3 28.3 Manual ---- 3.7 Y90S-4 1.1KW ---- 62 5.1
NZ-9 Φ9m 9 3 63.6 Auto 0.25 4.34 Y132S-6 3KW XWD0.8-3 0.8KW 140 8.5
NZS-9 Φ9m 9 3 63.6 Manual 0.25 4.34 Y132S-6 3KW ---- 140 7.5
NZS-12 Φ12m 12 3.5 113 Manual 0.25 5.28 JTC752A-44 5.2KW ---- 250 11.1
NZ-15 Φ15m 15 4.4 176 Auto 0.4 10.4 JTC752A-44 5.2KW Y112M-6 2.2KW 350 26.0
NZ-20 Φ20m 20 4.4 314 Auto 0.4 10.4 Y100L1-4 5.2KW Y112M-6 2.2KW 960 28.9
NZ-30 Φ30m 30 7.165 707 ---- 0.61 13.7 JTC672A-44 5.2KW YCJ132-S 1.5KW ---- 36.6
NZS-45 Φ45m 45 4.633 1590 Manual ---- 20 JTC672A-44 5.2KW YCJ160-S 2.2KW 515 54.4
NT-15 Φ15m 15 3.5 177 ---- ---- 8.4 Y132M2-6 5.5KW ---- 390 12.6
NQ-18 Φ18m 18 3.5 255 ---- ---- 10 Y132M2-6 5.5KW ---- 560 11.6
NQ-24 Φ24m 24 3.4 452 ---- ---- 12.7 Y160M-6 7.5KW ---- 1000 26.6
NG-30 Φ30m 30 3.6 707   ---- 16 Y160M-6 7.5KW ---- 1570 30.9
NJ-38 Φ38m 38 4.9 1134 ---- ---- 10-25 JZT252-4 11KW Y160M-6 7.5KW 1600 63.3
NT-45 Φ45m 45 5.05 1590 Auto ---- 19.3 Y160L-6 11KW ---- 2400 66.8
NTJ-53 Φ53m 53 5.07 2202 ---- ---- 23.18 Y180L-6
15kw
---- 6250 89.1
NT-100 Φ100m 100 5.65 7846 ---- ---- 43 Y180L-6 15KW ---- 3030 214.9
