Chinaware Ball Mill

Chinaware Ball Mill

Charge Amount: 0.05-15 tons per time

Reference Power: 2.2-75kw

Application Range: Suitable for mixing and grinding common and special materials.

Features: Even fineness and power conservation

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

Chinaware ball mill is mainly used for the mixing and grinding of materials, and the fineness of the final products is even, thus saving motive power. It can be used in both dry grinding and wet grinding. This machine can adopt different lining board types according to the production need to satisfy different needs of the customers. The fineness of the grinding process is automatically controlled by the grinding time. This machine is started by auto-transformer to reduce the starting current. This machine can adopt two types of structure: unitary and independent type.

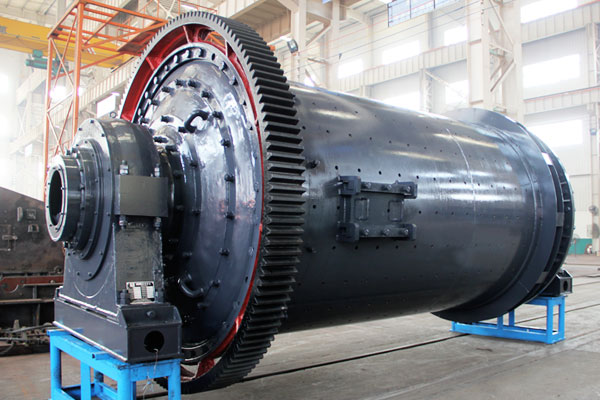

Chinaware Ball Mill

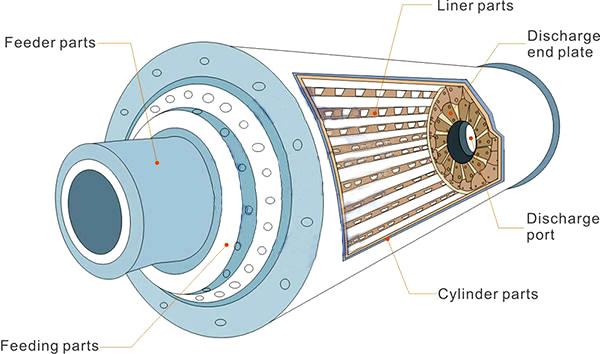

Chinaware ball mill is a horizontal type cylinder rotary device which is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control. The hollow shaft uses steel casting, the inner lining can be dismantled and changed, and the rotary rack wheel uses casting gear hobbing.

Chinaware Ball Mill

Advantages of the product are lower investment, energy saving, structure novelty, simple operation, safety usage, smooth performance etc; Suitable for mixing and milling of the general and especial material. User could choose the proper type and line, media material depend on material ratio, rigidity and output size etc.

Technical Data

Model Feeding capacity
(t/time)
Shell rotation speed
(r/min)
Reference motor
(kw)
Liner material
600×700 0.05 50 2.2 Chinaware,silicon,rubber or metal(the related motor power varied as per the different liner materials and grinding materials)
800×600 0.075 42 3
900×1200 0.2 38.5 5.5
1300×1500 0.5 33 7.5
1500×1800 1.2 28.5 11
1800×2000 1.5 24 15
2600×2800 5 16.5 37
3000×3800 10 14.5 57.2
3200×4600 15 13.5 75
