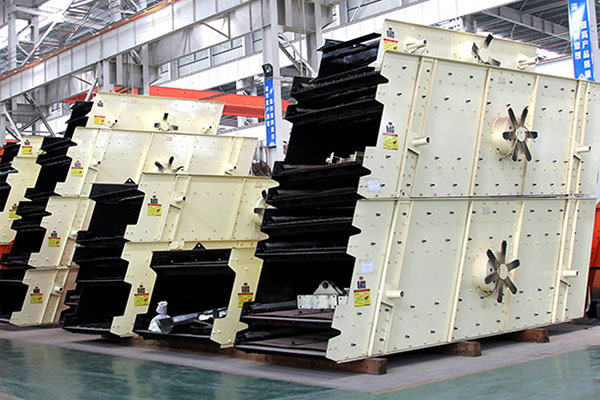

Vibrating Screen

Vibrating Screen

Supply Ability: 20 Set/Sets per Month

Production capacity: 8-680m3/hMonth

Certificate: ISO9001:2008

Feature: Reliable structure, high screen efficiency, low noise, durability, easy maintenance

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

A vibrating screen is a large mechanical tool used to separate solids, liquids and powders. Industries as diverse as mining operations, chemical companies and construction firms utilize these tools to help sort and clean items. Using gravity, motion and mesh screens, these tools perform the work of several people in a fraction of the time.

The screening machine is used to separate the stuff. It is composed of main frame, screen web, electric motor, eccentric bock, rubber spring, and coupler and so on. We will offer suitable type according to your requirements. ZSG series of linear vibrating screens are widely applied to screen dry materials in building materials, water and power and light industry. The advantages of this series screen are as follows: stable operation, lower energy consumption, low noise, high efficiency and long service life.

Vibrating Screen

Features of Circular Vibrating Screen

1) It uses eccentric block to produce strong exciting force.

2) It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, and little noise.

3) Electricity power consumption is less.

4) Simple structure and easy to disassemble and replace;

Crossbeam and the main body of the screen are connected by high strength screw bolts. So they have the features of simple structure and easy maintenance.

5) It adopts tire coupling with capability of flexible connection and stable operation.

Vibrating Screen

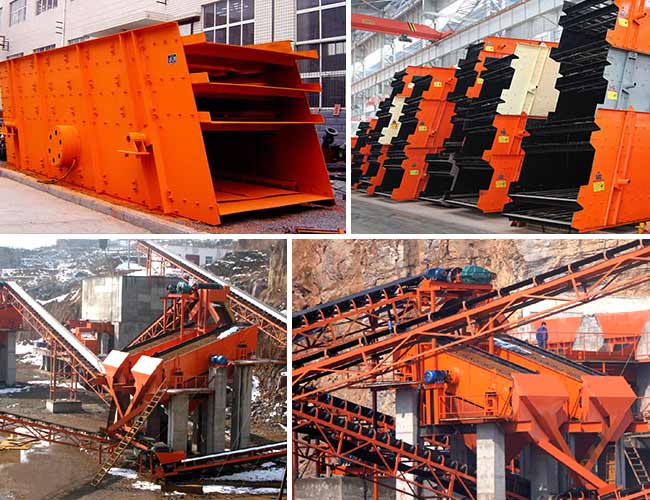

Applications

Ideal for

  • Efficient with difficult to screen all kinds of materials
  • Use as standalone unit, or in a multi-stage process
  • Applicable industries:  widely used in Mining, Quarry, Building, Construction, etc.

Technical Data

Model Sieve
layer
Sieve
area
(m²)
Mesh
size
(mm)
Max.
feeding
size
(mm)
>Processing
 capacity
(m³/h)
Vibrating
Frequency
(r/min)
Double
amplitude
(mm)
Motor
power
(kw)
Sieve
obliquity
(°)
Sieve
specification
(mm)
>Dimensions
(L×W×H)
(mm)
2YK1225 2 6 4-50 200 8-60 800-970 8 6P   5.5KW 20 1200×2500 2930×1860×870
3YK1225 3 9 4-50 200 10-70 800-970 8 6P   5.5KW 20 1200×2500 3070×1860×1210
2YK1230 2 7.2 4-50 200 12-78 800-970 8 6P   7.5KW 20 1200×3000 3430×1860×870
3YK1230 3 10.8 4-50 200 13-80 800-970 8 6P   7.5KW 20 1200×3000 3570×1860×1210
2YK1237 2 8.88 4-50 200 15-86 800-970 8 6P   7.5KW 20 1200×3700 4050×1860×870
3YK1237 3 13.32 4-50 200 16-90 800-970 8 6P   7.5KW 20 1200×3700 4270×1860×1210
2YK1535 2 10.5 5-50 200 20-125 800-970 8 6P   11KW 20 1500×3500 4120×2210×1230
3YK1535 3 15.75 5-50 200 21-125 800-970 8 6P   11KW 20 1500×3500 4360×2210×1610
2YK1545 2 13.5 5-50 200 22-150 800-970 8 6P   11KW 20 1500×4500 5120×2210×1230
3YK1545 3 20.25 5-50 200 22-150 800-970 8 6P   15KW 20 1500×4500 5360×2210×1610
4YK1545 4 27 5-50 200 22-155 800-970 8 6P   15KW 20 1500×4500 5930×2210×2060
2YK1548 2 14.4 5-50 200 22.5-162 800-970 8 6P   11KW 20 1500×4800 5420×2210×1230
3YK1548 3 21.6 5-50 200 22.5-162 800-970 11 6P   15KW 20 1500×4800 5660×2210×1610
4YK1548 4 28.8 5-50 200 22.5-162 800-970 8 6P   18.5KW 20 1500×4800 6230×2210×2060
2YK1848 2 17.28 5-80 200 25-206 750 8 6P  18.5KW 20 1800×4800 5420×2550×1420
3YK1848 3 25.92 5-80 200 32-276 750 8 6P   18.5KW 20 1800×4800 5660×2550×1780
4YK1848 4 34.56 5-80 200 32-285 750 8 6P   22KW 20 1800×4800 6290×2550×2160
2YK1854 2 19.44 5-80 200 32-312 800-970 8 6P   22KW 20 1800×5400 5960×2550×1420
3YK1854 3 29.16 5-80 200 32-312 800-970 8 6P   22KW 20 1800×5400 6260×2550×1780
4YK1854 4 38.88 5-80 200 32-336 800-970 8 6P  22KW 20 1800×5400 6830×2550×2160
2YK2160 2 25.2 5-100 200 50-475 970 8 6P   30KW 20 2100×6000 6720×2840×1530
3YK2160 3 37.8 5-100 200 50-475 970 8 6P  30KW 20 2100×6000 7030×2840×1910
4YK2160 4 50.4 5-100 200 50-497 970 8 6P   37KW 20 2100×6000 7300×2840×2380
2YK2460 2 28.8 5-100 200 65-550 970 8 6P   30KW 20 2400×6000 7020×3140×1530
3YK2460 3 43.2 5-100 200 70-620 970 8 6P   37KW 20 2400×6000 7300×3140×1910
4YK2460 4 57.6 5-100 200 80-680 970 8 6P   45KW 20 2400×6000 7600×3140×2380
2YK2870 2 39.2 5-100 200 120-680 750 8 8P   22×2KW 20 2800×7000 7600×4320×1620
3YK2870 3 58.8 5-100 200 180-720 750 8 8P   22×2KW 20 2800×7000 7800×4320×2120
2YK3072 2 43.2 5-100 200 200-700 750 8 8P   22×2KW 20 3000×7200 7800×4520×1750
3YK3072 3 64.8 5-100 200 230-800 750 8 8P   22×2KW 20 3000×7200 8000×4520×2300



Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you. Contact Email: sales@hxjq.com
