Crawler Mobile Crusher

Crawler Mobile Crusher

Feeding size: 60-660mm

Applied material: concrete scrap, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz and coal.

Application area: mining, metallurgy, building construction, road, railways and so on.

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

Crawler mobile crusher is a new innovative way to combine crusher and screen onto the same chassis. It is typically used as secondary or tertiary crushing plant in a multistage crushing process to produce up to three calibrated end products. This only two-stage process has remarkably lower running costs and it is easier to transport than other solutions.


1. Two units combined into one
2. Remarkable savings in energy, transportation and maintenance costs
3. High-capacity ensured by powerful crusher and screen
4. Excellent energy efficiency
5. Quick to setup with hydraulic functions

Mobile Jaw, Cone and Impact Crushers

We have a wide range of highly mobile equipment to make your job easier, no matter what you're crushing.This selection includes jaw crushers, impactors, cone crushers, screens and scalpers for quarrying and rock excavation projects.

Crawler mobile crusher

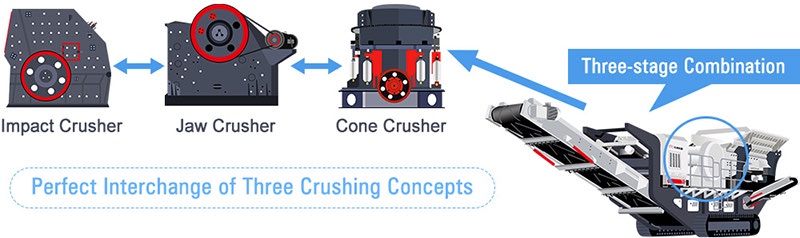

What you need invest is just the single equipment cost. In a short time, it realizes the interchange of different crushing units in the mining working site.

Mobile Jaw Crushers

Mobile jaw crushers are designed to exceed the primary crushing needs of customers in the mining, quarrying and recycling industries. These machines are amongst the most advanced and reliable in the market and are highly productive in a variety of applications. Whatever the application, Hongxing heavy duty jaw crushers are designed to deliver increased levels of productivity, while maximizing operator comfort and bottom-line cost efficiency.

Some Output Sizes of Crawler Mobile Crusher

Some Output Sizes of Crawler Mobile Crusher

Mobile Cone Crushers

Our range of mobile cone crushers provides you with high-quality materials and excellent shape for secondary and tertiary crushing. Our mobile cone crushers are ideal for providing you the highest quality end products to maximize your bottom line. This only two-stage process has remarkably lower running costs and it is easier to transport than other solutions.

crawler mobile crusher

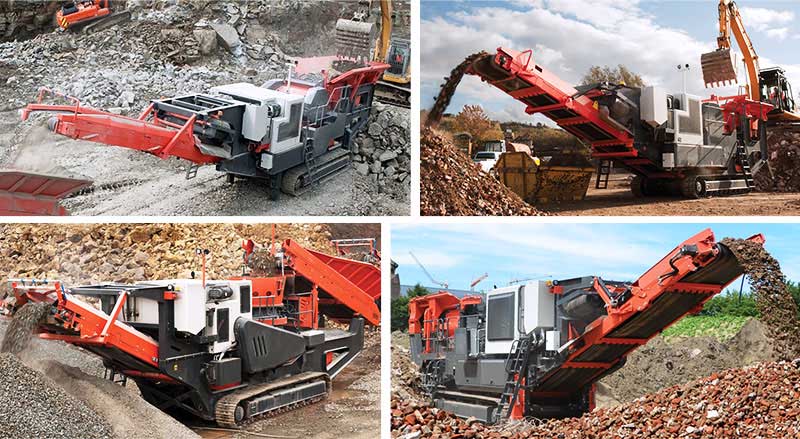

Sites of Mobile Jaw, Cone and Impact Crusher

Mobile Impact Crushers

Mobile impact crushers are used for soft to medium-hard natural stone and for the reprocessing of residual construction materials. Capable of processing a wide range of material at a high output, these plants are versatile, easy to operate and fuel efficient due to their direct drive system. Mobile impact crusher series offers unparalleled levels of control, flexibility and productivity in recycling and quarrying applications.


Ideal for

  • Efficient secondary crushing & screening applications
  • Producing up to 3 end products using just one machine
  • Easy transportation between multiple crushing sites
  • For hard rock, soft rock, gravel, recycling, industrial materials, slag, foundry waste...

Technical Data

Items HX938E69 HX935PF1214 HX1142HD98 HX1142PF1315 HX1142HD110
Vibrating Feeder ZSW-950×3800 ZSW-950×3800 ZSW-110×4200 ZSW-110×4200 ZSW-110×4200
Jaw Crusher PE600×900 PF1214 HD98 PF1315 HD110
Main belt conveyor B800×8.5M B800×8.5M B1000×9M B1000×9M B1000×9M
Discharging height of main belt conveyor(mm) 3200 3200 3500 3500 3500
Side-opening Belt conveyor(Optional) B450×3M B450×3.2M B500×3.5M B500×3.5M B500×3.5M
Discharging height side-opening belt conveyor(mm) 2800 2800 3100 3000 3100
Power of genset(kw) 180 250 200 300 250
Transportation length(mm) 12000 12000 13600 13600 14600
Transportation width(mm) 3100 3100 3100 3100 3300
Transportation height(mm) 3650 3650 4500 4500 5000
Weight(mm) 43.5 50 59 59 67
Working length(mm) 12100 12100 13500 13500 15200
Working width(mm) 3100 3100 3100 3100 3300
Working height(mm) 4100 4100 5100 4800 5500
