Vibrating Feeder

Vibrating Feeder

Supply Ability: 25 Set/Sets per Month

Model Number: GZD,ZSW

Production capacity: 80-800t/h

Feature: Stable vibration, reliable operation

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

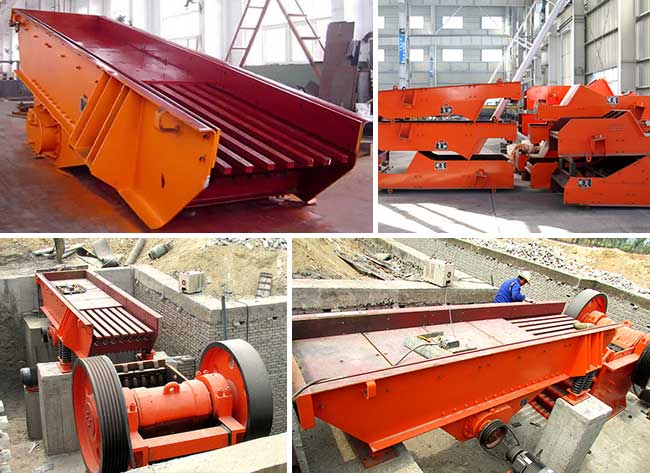

Vibrating feeder also can be called vibrating feeding machine. Vibratory feeder in the production line can transport the material with the shape of massive and particles smoothly to the feeding device in a stable time, which can continuously feed the raw material to the crushing mechanical machine for such as long time beyond our imagination and which also can help to screen the coarse and fine product of mining machine, that is the reason why it can be used in the industries of metallurgy, coal ore, ore dressing, building material, chemical industry and grinding material in order to reach the purpose of combination of crushing and screening in the production line of mining machinery.

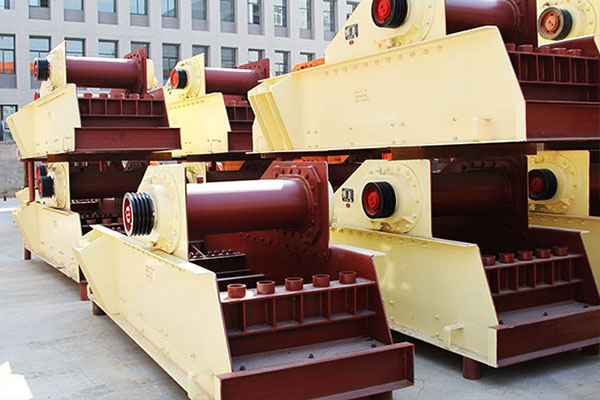

Vibrating Feeder

The series of vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. In installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, and when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.

Henan Hongxing Mining Machinery Co., Ltd. is considered as a specialist in the market of China vibratory feeder. For example, the electromagnetic vibratory feeder is fitted with a tray made of mild steel and a body housing the electromagnet. The tray which is linked to the armature of the magnet vibrates as the magnet gets energized. The vibration sets the material in motion. We offer this vibratory feeder at industry leading prices to gain optimum client satisfaction.

Technical Data

Model Max.
Feeding
Size
(mm)
Processing
Capacity
(t/h)
Motor
Power
(kw)
Obliquity
of material
trough
(°)
Trough
size
(mm)
Dimensions
(L×W×H)(mm)
GZD-650×2300 300 80-100 1.1×2 10-20 650×2300 2300×1360×780
GZD-750×2500 350 100-130 1.5×2 10-20 750×2500 2500×1460×780
GZD-850×3000 400 120-150 3×2 10-20 850×3000 3110×1800×1600
GZD-1000×3600 500 150-200 3.7×2 10-20 1000×3600 3850×1950×1630
GZD-1100×3600 580 240-300 3.7×2 10-20 1100×3600 3600×2050×1660
GZD-1300×3600 650 450-600 7.5×2 10-20 1300×3600 3900×2350×1750
GZD-1500×3600 1050 450-1000 7.5×2 10-20 1500×3600 3900×2000×1750
GZD-2000×3600 1200 550-1000 10×2 10-20 2000×3600 3600×2000×1750
GZD-2500×5000 1500 650-1500 18×2 10-20 2500×5000 5000×2500×1800
ZSW-380×95 500 100-180 11 0-10 3800×960 3800×1640×1320
ZSW-490×110 630 150-400 15 0-10 4900×1100 4980×1830×1320
ZSW-490×130 750 400-700 22 0-10 4900×1300 4980×2580×2083
ZSW-600×130 750 400-700 22 0-10 6000×1300 6082×2580×2083
ZSW-600×150 800 500-900 30 0-10 6000×1300 6086×2662×1912
ZSW-600×180 900 700-1300 37 0-10 6000×1500 6310×3262×2230
ZSW-600×200 1200 800-1500 45 0-10 6000×2000 6086×2662×1912

Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you. Contact Email: sales@hxjq.com
