High strength Raymond mill

High strength Raymond mill

1. Low production costs, high-performance
2. Stability and Reliability
3. Product size composition

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

High-strength Raymond mill is used for grinding the barite, limestone, kaolin, ceramics and slags, etc. With the hardness below scale 9.3 of Mons and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgical industry, chemical engineering and building material for high fine powder generation and processing, the adjustable product size is in the range of 80-425 (1000 the finest) meshes. It is possible to produce 30-80 mesh coarse powder through special device in the machine.

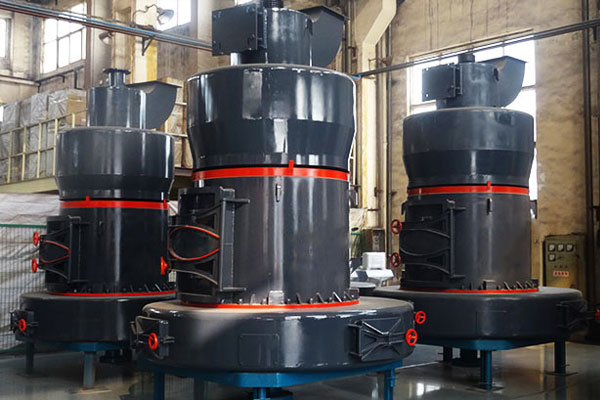

High strength Raymond mill

Technical Data

     Parameter
Model
Raymond mill62 High strength66 High strength76 High strength87 High strength92 High strength93 High strength97 Raymond mill4119 Raymond mill4525
Feeding
size(mm)
≤15 ≤15 ≤20 ≤25 ≤25 ≤25 ≤25 ≤25 ≤30
Size of finished
product(mm)
0.173-0.033 0.173-0.033 0.173-0.033 0.173-0.033 0.173-0.033 0.173-0.033 0.173-0.033 0.173-0.044 0.173-0.044
Shift output of
 different material
fineness(t)
0.6-9 1-20 1.5-25 2.8-33 3-36 3.5-40 4-52 8-78 16-176
Rotate speed
of central
shart(r/min)
274 190 170 161 148 140 130 105 82
Diameter of
pulverizing
ring(mm)
525 725 850 907.5 973 1006 1050 1400 1770
Diameter of
pulverizing
ring(mm)
150 210 250 270 300 300 310 410 450
Height of
 pulverizing
roller(mm)
100 150 150 150 160 160 170 190 250
Main Motor 7.5 15 18.5 22 30 30 37 75 132
Fan Motor 4-5.5 4-11 4-15 4-18.5 4-22 30 4-37 90 4-132
Analyzer Motor 6-1.1 6-2.2 6-2.2 6-2.2 6-2.2 6-3 4A-5.5 4B-7.5 4A-18.5
