Bucket Elevator

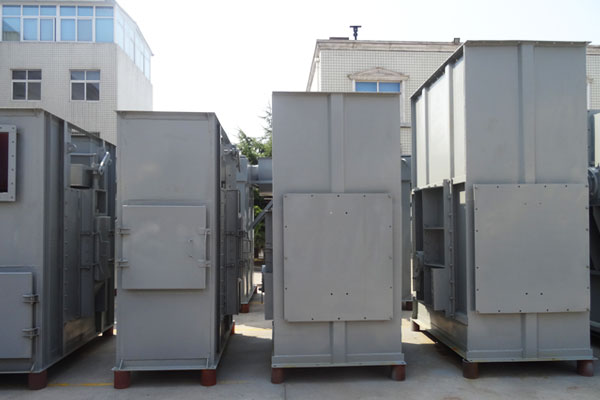

Bucket Elevator

Hoisting Height: 28-32.7m

Conveying Capacity: 3-60m³/h

Range of application: Coal, cement, stone, sand, clay and ore.

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

The bucket elevator is suitable for elevating the materials from a lower level to a higher level and the materials are conveyed upward in an automatic and continuous manner through the vibrating station. This elevator bucket has many advantages such as big conveying quantity, high elevating height, stable and reliable operation and long service life.

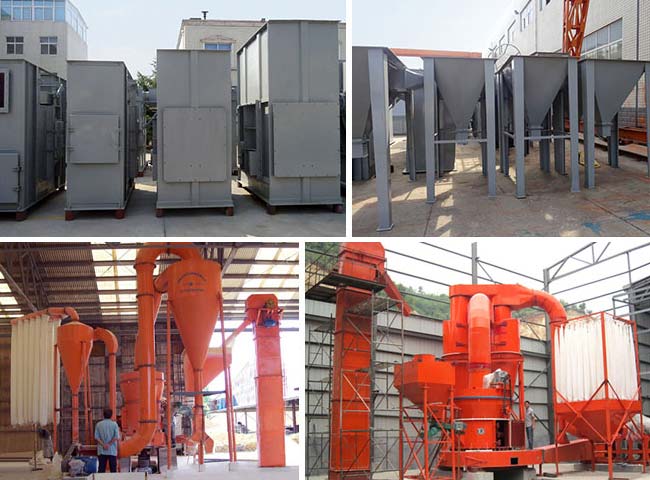

Bucket Elevator

Essentially, a bucket elevator is like a conveyor belt with buckets attached. It can be used to move things vertically, but it can also be used for transport at an angle, or for horizontal transport, depending on the design. The buckets are designed to swivel so that they always stay upright, avoiding spillage, and their edges are scooped, so that they can pick up materials by being dragged through them. A bucket elevator can move materials like ore, fertilizer, and grain.

Like many pieces of heavy equipment, the bucket elevator is designed for continuous operation. Start and stop operation can damage the device or decrease efficiency, in addition to increasing the risk of spills. A company may opt to run a bucket elevator for a set period of hours every day, or to run the device nearly continuously if its processing needs are ample enough. The bucket elevator does have emergency stop settings which allow people to turn the device off if there is a problem, and some are sensitive to blockages which suggest that something is caught in the device, and will turn off automatically.

Technical Data

Technical parameters of ring chainbucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Pitch of buckets
(mm)
Motor prower
(kw)
TH160 25 7-12 15-20 400 3-4
TH200 28 8-15 20-30 500 3-5.5
TH250 30 10-25 25-35 500 4-7.5
TH300 30 25-35 30-40 500 5.5-11
TH315 40 30-40 35-45 512 5.5-15
TH400 40 45-60 40-55 512 11-22
TH500 40 65-80 50-60 512 15-30
TH630 40 100-120 60-65 688 18.5-37
TH800 40 130-150 65-75 920 22-45

Technical parameters of wire belt bucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Bucket Volume
(L)
Motor prower
(kw)
TDG160 80 34 0-20 2.6 2.2-11
TDG200 80 45 0-25 4.1 3-15
TDG250 80 71 0-30 6.5 5.5-22
TDG315 80 101 0-35 10 7.5-30
TDG400 80 158 0-40 16 15-45
TDG500 80 218 0-45 25 18.5-55
TDG630 80 345 0-50 40 30-90
TDG800 80 491 0-50 61 45-132

Plate chain bucket elevator

Specification Max.lifting height
(m)
Max.lifting capacity
(m³/h)
 Percentageallowed
(%)
Pitch
(mm)
Motor power
(kw)
10 25 50 75 100
Max.size(mm)
NE15 40 16 65 50 40 30 25 101.66 1.5-4
NE30 59 31 90 75 58 47 40 152.4 2.2-7.5
NE50 62 60 90 75 58 47 40 152.4 3-15
NE100 58 110 130 105 80 65 55 200 7.5-30
NE150 65 170 130 105 80 65 55 200 11-37
NE200 73 220 170 135 100 85 70 250 18.5-75
NE300 61 320 170 135 100 85 70 250 22-75
NE400 47 420 205 165 125 105 90 300 45-90
NE500 58 500 240 190 145 120 100 300 45-132

Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you. Contact Email: sales@hxjq.com
