Concentrator Table

Concentrator Table

Supply Ability: 40 Set/Sets per Month

Certificate: ISO9001:2008

Production capacity: 10-60t/h

Feature: Low energy consumption, Good efficiency, Simple operation

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

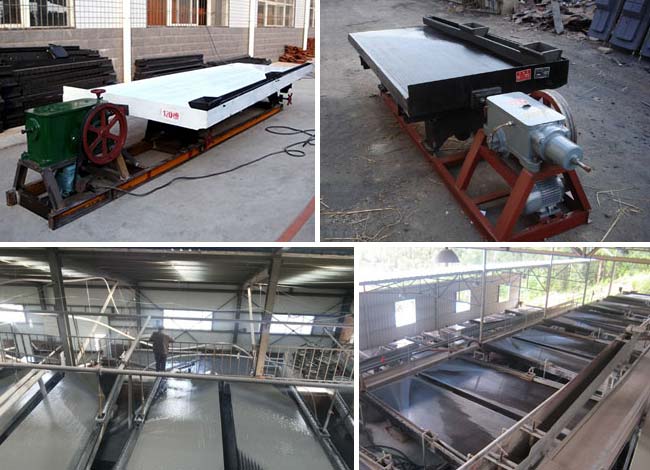

Concentrator table is also called shaking table or table concentrator which is a mine selecting machine for fine materials and it works by gravity. It is widely used in selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal. Our company has long history of table concentrator production; we provide a variety of table concentrators with high processing capacity, high recovery rate and high enrichment ratio.

Concentrator Table

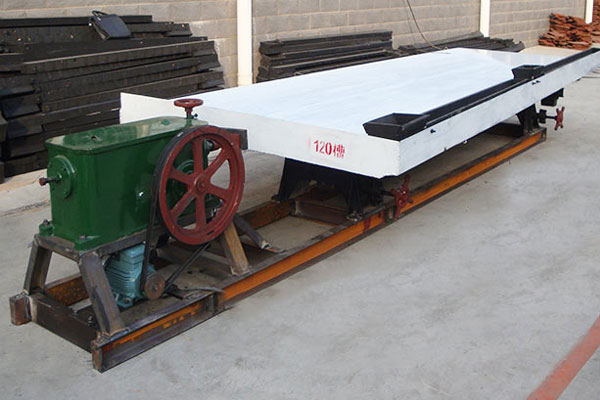

The ore dressing concentrator table is usually composed of the bed surface, the frame and the driving mechanism. In addition, there is a water tank, a feed chute, and rack. The whole bed surface is supported or hoisted by the rack. The rack is equipped with adjustable slope device. The concentrator can make the particles move along different paths due to different intensity and granularity and will be discharged from the edges of the bed surface. Since the ore line is very long, products with different grades will be classified, such as concentrate, minor-concentrate, tailings, etc.

Technical Data

Name Grit
concentrator
 table
Fine sand
concentrator
 table
Sludge
concentrator
 table
Bed surface
Dimensions
Length
(mm)
4450 4450 4450
Driving
part Width
(mm)
1855 1855 1855
Concentrate
part Width
(mm)
1546 1546 1546
Max.feeding
size(mm)
2 0.5 0.15
Feeding
amount
(t/d)
30-60 10-20 15-25
Feeding
thickness
(%)
25-30 20-25 15-25
Stroke
(mm)
16-22 11-16 8-16
Frequency
(f)
45-48 48-53 50-57
Bed surface
Water quantity
(t/d)
80-150 30-60 10-17
Bed surface
Horizontal
obliquity(°)
2.5-4.5 1.5-3.5 1-2
Bed surface
Portrait
obliquity(%)
1.4 0.92 ----
Table board
corner(°)
32-42 40 42
Concentrating
area(㎡)
7.6 7.6 7.6
Bed surface
Length ratio
2.6 2.6 2.6
Shape of
side-bed
surface
Rectangle Zigzag Triangle
Motor
power(kw)
1.1 1.1 1.1
Transmission
device
Eccentricity Linkage
